Reports

MEGFlow provides two report interfaces:

• A portable static HTML report generated by the Nextflow workflow.

• An interactive Streamlit report viewer started with -r or --view_report.

The static report is the first place to inspect a completed run. The interactive report is used when reviewers need to inspect the underlying recording, edit sidecar files, and continue the workflow with Nextflow -resume.

Downloadable Report Demonstrations

A complete MEGFlow report demonstration package is available from the MEGFlow demonstration archive on OSF. The archive provides a complete, self-contained static HTML report package for download and a demonstration video showing how the interactive Streamlit report is opened and reviewed. After extracting the static report package, open its index.html file in a web browser; no running MEGFlow service is required.

Fig. 1 A MEGFlow run records selected steps, task status, cache reuse, runtime, and completion statistics in the Nextflow console output.

Static Processing and QC Report

Every MEGFlow run that reaches a MEG milestone writes a static report under:

<output_dir>/static_html_report/

Open the report entry point:

<output_dir>/static_html_report/index.html

The static report can also be regenerated without rerunning the pipeline:

docker run --rm -it \
  -v /data/bids:/input \
  -v /data/out:/output \
  -v /data/smri:/smri \
  cplmeg/megflow:1.0.0 \
  -i /input -o /output --fs_subjects_dir /smri --steps report

The report directory is self-contained and includes copied figures, sidecar files, JSON summaries, CSV summaries, and a config snapshot when available. Its nextflow/ directory is owned by Nextflow and contains the execution report, timeline, trace, and launcher log when available. MEGFlow regenerates its own report assets without deleting this directory, and the dashboard links directly to these run-level files. Subject pages also include a collapsed Task Details table derived from the Nextflow trace file when one is available. If a task failed or was ignored, the page adds Task Failure Details with the error summary and packaged command log excerpts.

Static Report Visual Tour

The dataset dashboard is designed for triage. Start with the selected workflow, then move through aggregate metrics, completion status, alarm priority, and subject-level evidence.

Fig. 2 The workflow diagram is rendered from megflow_run_manifest.json and the effective configuration. It changes with steps so reviewers can verify that the report matches the intended run mode.

Dataset overview

Aggregate NMDQ score, bad-channel and bad-segment counts, coregistration distances, epoch rejection, status counts, and alarm totals are summarized at the dataset level.

NormMEG-QC and NMDQ score

NormMEG-QC summarizes metric-family scores on a fixed 0-100 scale together with the overall NMDQ score, processing gate, and warning threshold.

Completion matrix

The completion matrix shows which stages completed for each recording, making partial runs and failed or skipped branches easy to identify.

Priority review

Alarm summaries highlight recordings that should be reviewed first before spending time on passed subjects.

Subject details

Subject pages collect alarms, stage-level evidence, packaged files, and Nextflow task logs for the selected recording.

Stage-Level Evidence

Static subject pages include stage-specific figures so reviewers can inspect the evidence behind each warning or failed threshold.

Artifacts

Bad-channel and bad-segment evidence is packaged with the report for offline inspection.

ICA

ICA labels, marked components, enabled ECG/EOG/outlier candidates, topographies, and overlay plots are grouped on the subject page. A category disabled in that recording’s resolved ic_label settings is omitted from missing-component alarms rather than being reported as a failed detection.

Coregistration

Coregistration figures and distance summaries help confirm that each MEG recording was matched to the intended MRI subject.

Report Contents

Path	Description
index.html	Dataset-level dashboard with workflow diagram, aggregate metrics, subject table, alarm counts, and links to subject pages.
subjects/<recording>.html	Recording-level details for artifacts, ICA, coregistration, epochs, covariance, head model, source reconstruction, and packaged files.
alarms.html	Searchable alarm list across all recordings.
data/dataset_summary.json	Machine-readable dataset summary.
data/subjects.csv	Spreadsheet-friendly subject summary table.
data/subjects/<recording>.json	Machine-readable per-recording summary.
data/nextflow.config.txt	Nextflow runtime/project config snapshot when MEGFlow can locate one.
data/megflow_run_manifest.json	Workflow mode and run metadata used to render the workflow diagram.
files/<recording>/errors/*.txt	Packaged .command.err, .command.log, and .command.out excerpts for failed or ignored tasks, when available.
files/<recording>/tasks/*.txt	Optional .command.log excerpts for successful tasks when static_task_log_mode = 'all-command-log'.

When dataset reports are bundled into a corpus report, the sticky navigation follows the report hierarchy. Dataset-level pages link to Corpus overview; subject pages link to their local Dataset overview so reviewing one subject does not unexpectedly leave the current dataset.

Completion states are determined from required derivatives such as Epochs FIF, forward FIF, covariance/rank files, and source-estimate files. Optional PNG visualizations do not decide whether those processing stages completed.

Task Log Bundling

By default, MEGFlow copies successful-task .command.log excerpts as well as failed-task command logs so the portable report contains fuller task provenance. Configure this with static_task_log_mode in the Nextflow config. Put a shared value under params.megflow.defaults.report or override it in a named dataset profile.

Value	Behavior
all-command-log	Default. Copy .command.err, .command.log, and .command.out excerpts for failed or ignored tasks, and also copy .command.log for successful tasks.
failed	Copy command logs only for failed or ignored tasks when a smaller report package is preferred.
none	Do not copy .command* logs. The report still shows trace-derived task status, exit code, duration, memory, and hash values.

Example:

params {
  megflow {
    defaults {
      report {
        static_task_log_mode = "all-command-log"
      }
    }
  }
}

How to Interpret the Static Report

Start from index.html:

1. Review the workflow diagram to verify that the selected steps mode matches the intended run.

2. Sort the subject table by alarms, bad channels, bad segments, coregistration distance, or epoch rejection rate.

3. Open subject pages for recordings marked WARN or FAIL.

4. For artifact alarms, inspect the bad-channel list, bad-segment table, and artifact mask heatmap. The heatmap summarizes where bad channels and bad time segments occur across the recording before opening the more detailed waveform images.

5. For ICA alarms, inspect marked components, ECG/EOG candidates, component topographies, and ICA overlay/PSD plots.

6. For coregistration alarms, inspect the staged coregistration figures and confirm that the recording was matched to the correct MRI subject.

7. If a subject is marked FAIL because a Nextflow task failed or was ignored, open Task Failure Details first, then expand Task Details for the full trace context.

The report includes measured values, static alarms, and the NMDQ score produced by NormMEG-QC when megqc.enabled = true. See Quality Control Metrics for the complete metric list and score-gating details.

Interactive Streamlit Report

To view quality control reports through the interactive Streamlit interface, run MEGFlow with Docker and expose port 8501:

docker run --rm -it -p 8501:8501 \
  -v /data/megflow_output:/output \
  cplmeg/megflow:<version> \
  -r

The Docker entrypoint handles mounted output permissions automatically. It starts as root, prepares /output when needed, then drops to the host UID/GID inferred from /input. For report-only runs that only mount /output, the UID/GID are inferred from /output instead, so an existing report directory owned by the submitting user stays writable. If neither mount has the desired owner, pass -e LOCAL_UID="$(id -u)" -e LOCAL_GID="$(id -g)".

Then open:

http://<server_ip>:8501

Use http://localhost:8501 when running locally. The Streamlit report is a viewer and does not run Nextflow preprocessing.

For corpus-mode outputs, mount the output root and pass it as -o:

docker run --rm -it -p 8501:8501 \
  -v /data/megflow_corpus_output:/output \
  cplmeg/megflow:<version> \
  -r -o /output

The Streamlit entrypoint detects /output/datasets/<dataset_name>/ and adds a corpus dataset selector in the sidebar. After selecting a dataset, the usual interactive pages read that dataset’s preprocessed/ tree. If /output/smri/<dataset_name>/ exists, it is used as that dataset’s FreeSurfer SUBJECTS_DIR.

Interactive Review and Editing

The interactive report reads the same processing outputs used by the static report, but allows reviewers to inspect and edit selected sidecar files. After saving edits, rerun MEGFlow with -resume so the downstream tasks that depend on those sidecars are recomputed.

Artifact review

Review PSD and waveform evidence, edit bad channels or bad segments, and save corrections for resumed downstream processing.

Fast artifact review

MEGFlow can generate waveform images for quick browser review when artifact_images_enabled: true is configured.

ICA review

Review automatic ICA labels, inspect component evidence, edit artifact labels when needed, and save the selected components.

Coregistration review

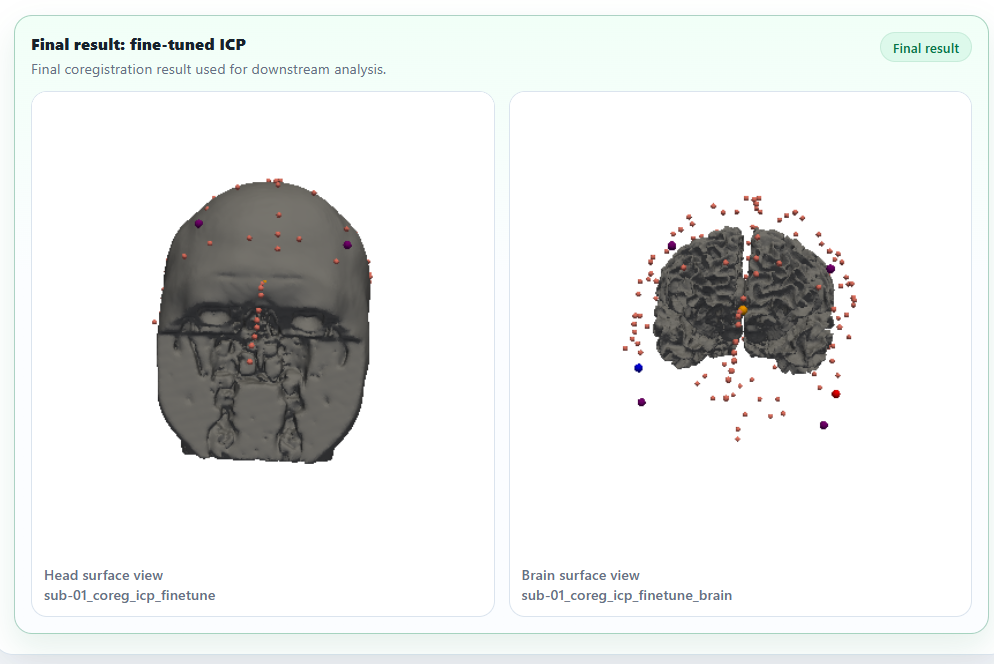

Inspect the alignment, run ICP, manually adjust the transform when needed, and save the corrected coregistration matrix.

Fig. 3 Source review provides an interactive view of source-localization results, including time navigation for inspecting source estimates at different latencies.
